ABAP String Interpreter
ABAP String Interpreter
⚠️ Pre-release: Until v1.0.0 is reached, breaking changes may occur without prior notice.
ZASIS extracts structured data from unstructured strings. You configure regex-based RuleSets, pass in a raw string (e.g. a barcode scan), and get back clean key/value pairs — no coding required per use case.
Scanners, barcode readers, and external systems often deliver a single string that packs multiple business values into one payload. Parsing that string is repetitive work — different formats, different fields, same logic over and over.
ZASIS lets you define a RuleSet once and reuse it everywhere. A RuleSet is a named collection of rules. Each rule extracts or transforms one field from the input string using regex, offsets, or custom ABAP logic. An optional context lets callers pass additional key/value metadata that flows through to results and downstream logic.
| Feature | Description |
|---|---|
| Match extraction | Regex match with configurable pre/post offset trimming |
| Replace transformation | Regex-based find & replace with a replacement string |
| Custom logic | Plug in any ABAP class implementing ZASIS_IF_CUSTOMLOGIC for arbitrary processing per rule |
| Context passing | Pass key/value pairs alongside the input string — echoed in the response and forwarded to custom logic and event producers |
| Regex validation | Invalid regex patterns are rejected at save time in the UI |

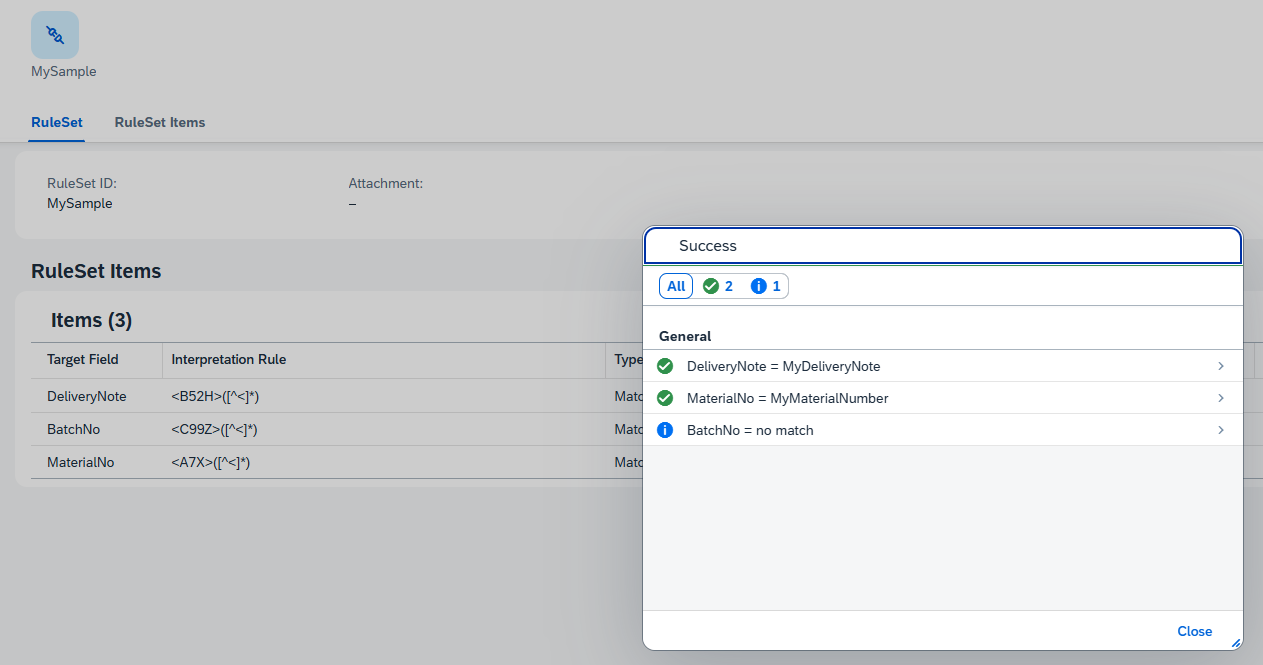

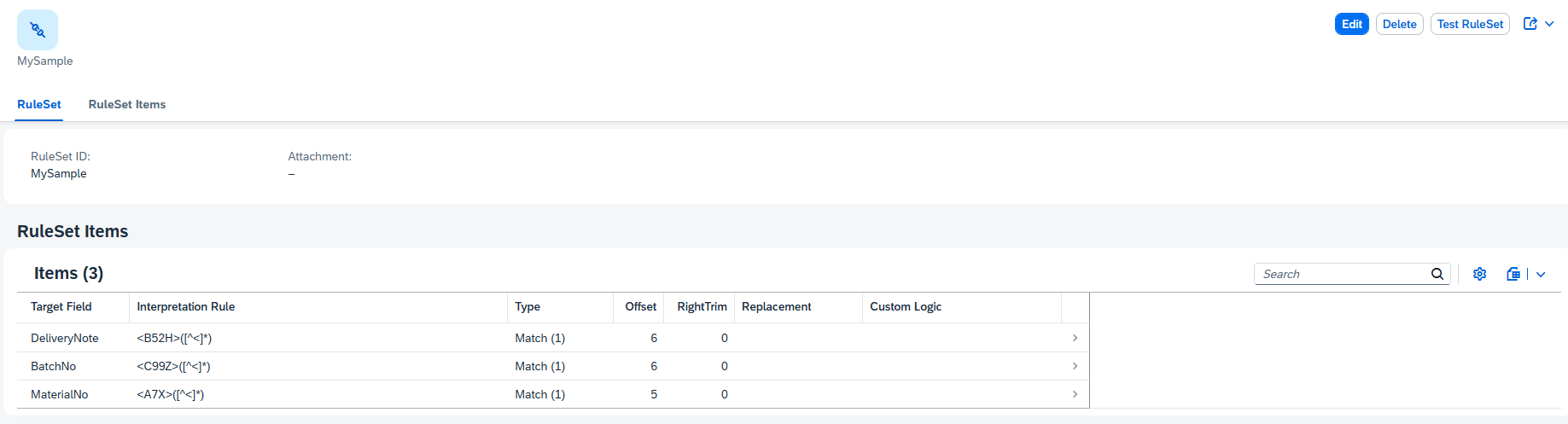

| Test from UI | Execute a RuleSet directly from the Fiori maintenance screen via the Test RuleSet action |
| Authorization | Per-RuleSet activity checks (Create, Change, Display, Delete, Execute) via auth object ZASIS_GRL |
| Three access points | Fiori Elements UI · ABAP API · HTTP REST endpoint |
Input string from a scanner:
<Start><A7X>MyMaterialNumber<B52H>MyDeliveryNote<End>
RuleSet "MySample" with two Match rules:
| Target Field | Regex | Offset |
|---|---|---|
MaterialNo | <A7X>([^<]*) | 5 |
DeliveryNote | <B52H>([^<]*) | 6 |
Call via HTTP POST with an optional context:
POST /ruleSetExecution/MySample
Content-Type: application/json
{
"string": "<Start><A7X>MyMaterialNumber<B52H>MyDeliveryNote<End>",
"context": [
{ "key": "Source", "value": "Scanner01" },
{ "key": "SessionId", "value": "A3F9" }
]
}
Result:
{
"RESULTS": [
{ "TARGETFIELD": "MaterialNo", "INTERPRETATIONRESULT": "MyMaterialNumber" },
{ "TARGETFIELD": "DeliveryNote", "INTERPRETATIONRESULT": "MyDeliveryNote" }
],
"CONTEXT": [
{ "KEY": "Source", "VALUE": "Scanner01" },
{ "KEY": "SessionId", "VALUE": "A3F9" }
]
}
Context is optional — omit it and the CONTEXT array in the response will be empty.
The current release contains artifacts for both ABAP Cloud and on-premise installations. A clean separation into dedicated cloud and on-premise release variants — each shipping only the relevant artifacts — is planned. See issue #88.
